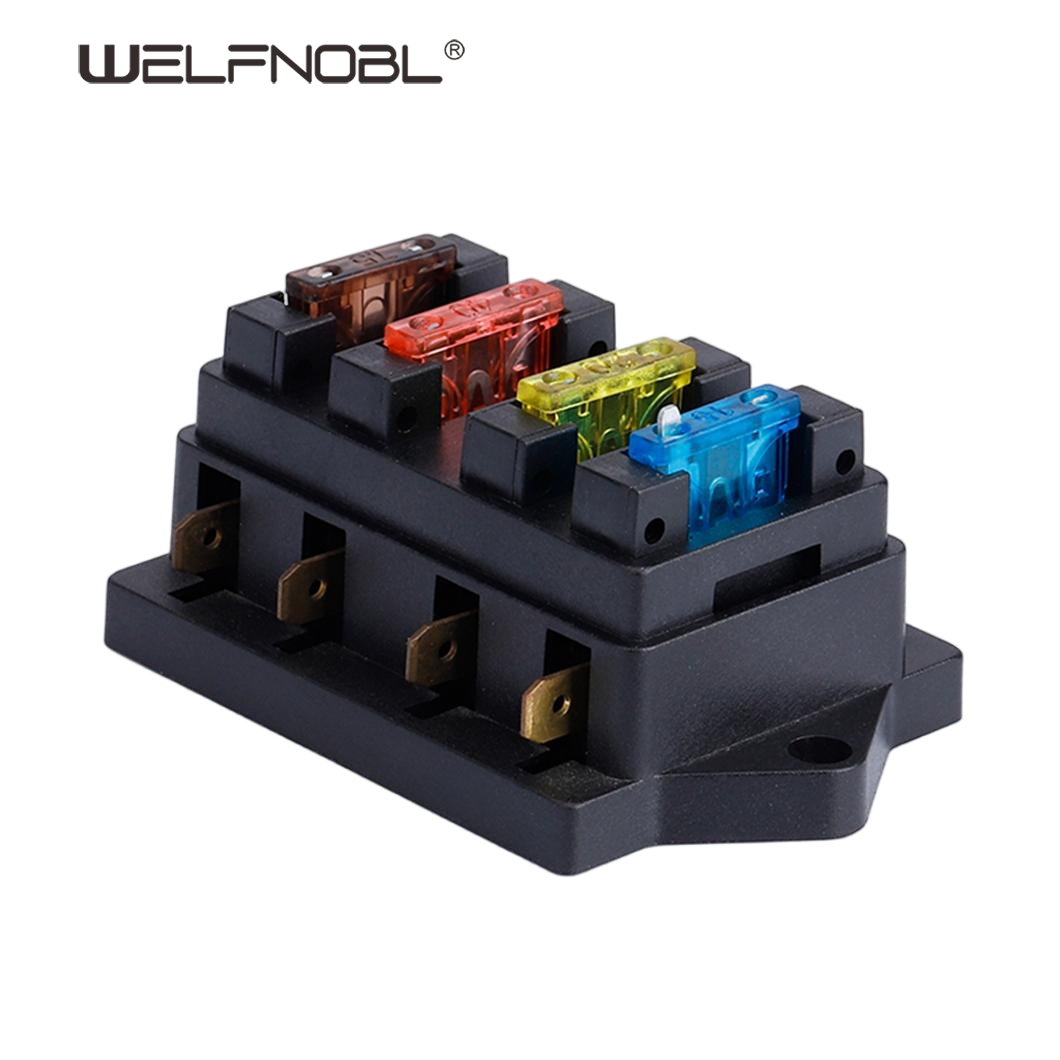

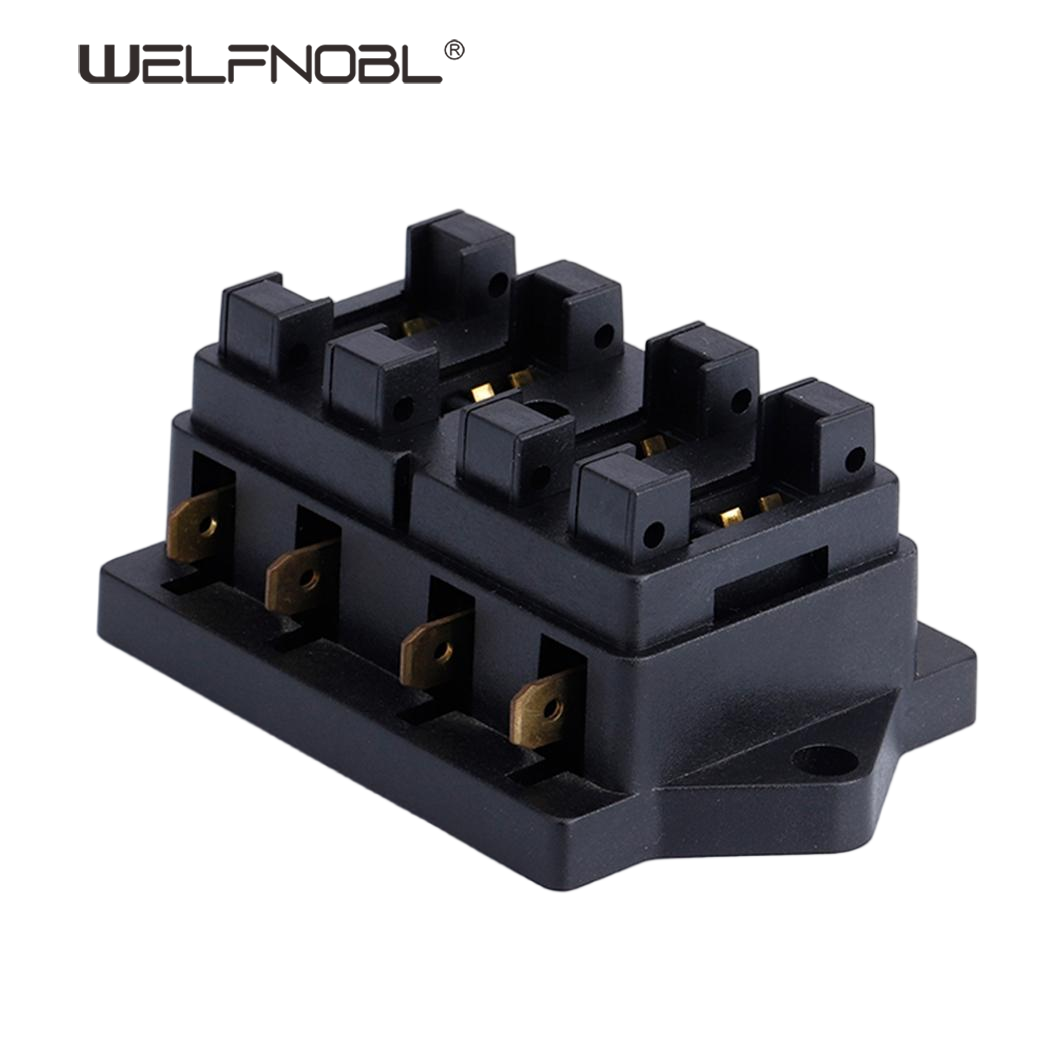

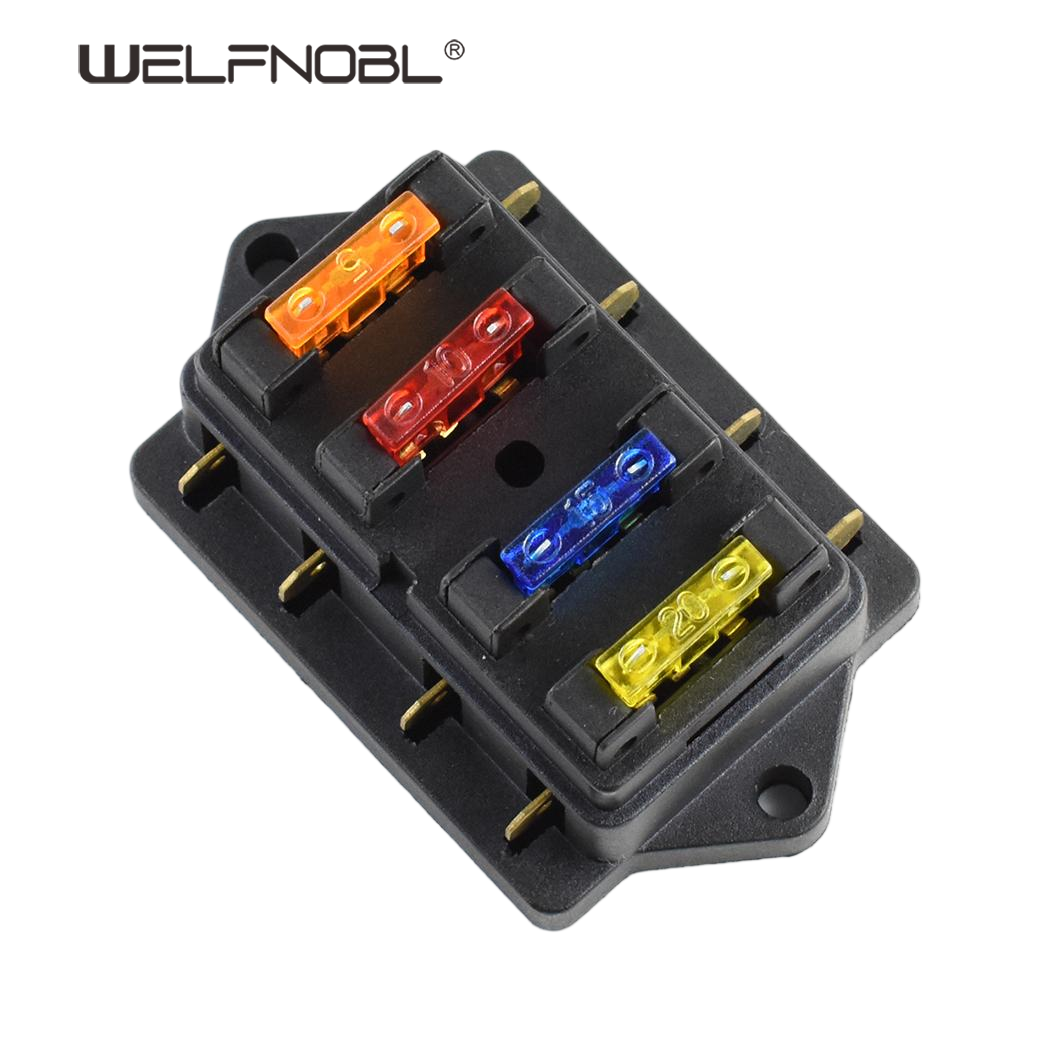

4 Way ATO Blade Fuse Box
Description
WNF-B0104 4 Way Circuit Standard ATO Blade Fuse Box Block Holder 12V 24V
4-way fuse blocks accommodate 30 amps per circuit at 12V DC. Blade fuse holder for slip on terminals has a clear plastic dust cover for easy access and visibility. It is widely used in the automotive electronic field, electrical devices and cars, boats etc.
About this item
ATC Automotive Blade 4Way fuse box
Automotive fuse box, suitable for middle-sized blade fuses.
Sturdy and robust construction
Can be secured via 2 pre molded holes

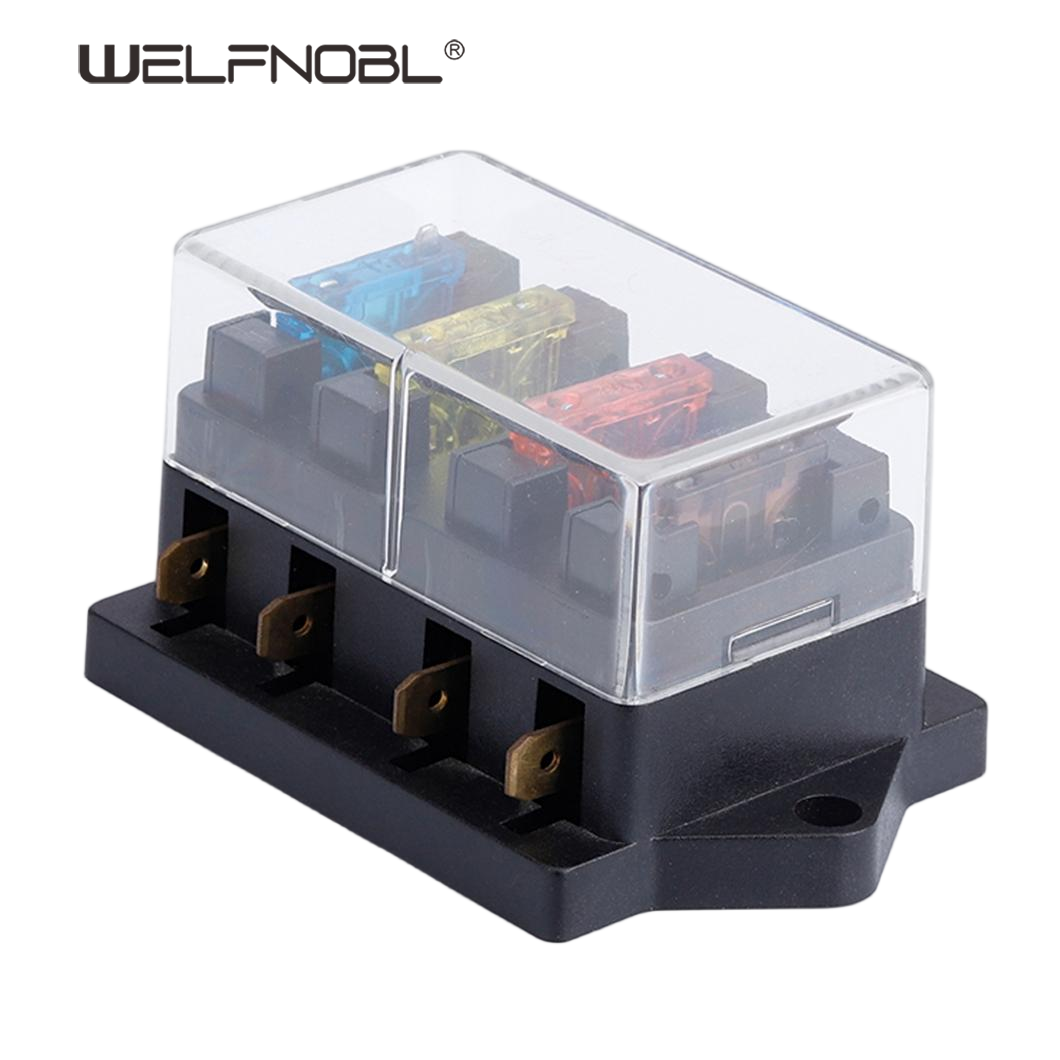

With transparent cover for dust and moisture protection.
Description:
1.Cable connection via side, plated 6.3mm (standard) blade terminals
2.Can be secured via 2 pre molded holes
3.Clear, vibration resistant, snap fit cover
4.Sturdy and robust construction
5.Ideal for Cars, Vans, Motorcycles, Quads, Boats, Marine, Tractor & Many other Automotive Uses
Feature:
Enable to hold 4 fuses
Universal for use in all vehicles
Compact size, sturdy construction
Integrative design, convenient to use
Can be secured via 2 pre molded holes
Transparent cover for dust and moisture protection
Cable connection via side, plated 6.3mm (standard) blade terminals
Specifications:
Color: black
Fuse current: 1-30A
Type: 4 way fuse holder
4 fuses: 10A/20A /30A/30A
Temperature range: -20 to 150℃
Dimension: 8.5x5.2x4.2cm/3.35"x2.05"x1.65"
Mounting hole diameter: 5mm
Fuse size: middle-sized blade fuses
Material: ABS plastic panel and copper
Max voltage: DC30V (12V/24V universal)
Usage: low voltmeter marine boat car SUV motorcycle etc.
【OPTIMAL CONDUCTIVITY】12v fuse block has positive & negative poles. Max operating voltage for the terminal block is 32V DC, this fuse box with max 30A per circuit & 100A per panel.
【SAFE MATERIAL】 Marine fuse panel made of environment-friendly PBT material, this boat fuse block meets all the ideal boat fuse panel standards. It is mechanically robust, insulated, heat resistant, and flame resistant. It hardly leads to break, deformation, combustion, or short-circuits.
【DIY STICKERS】Comes with a multifunctional DIY sticker for convenient examination & repair. You can easily identify which device is wrong, which is definitely suitable for outdoor troubleshooting.
【WIDE APPICATION】This Fuse Box is widely used in Cars, Buses, Tankers, boats, Yacht, Ships, etc.
specification
Product Name |
Car Fuse Holder Blade Fuse |
Input |
DC12-32V |
Input / Output current |
40A max. Per circuit |
Size |
8.5x5.2x4.2cm/3.35"x2.05"x1.65" |
Material |
Plastic + Metal |
Widely Used |
Cars, Vans, Motorcycles, Quads, Boats, Marine, Tractor & Many other Automotive Uses |
Package |
1 x 4 Way Fuse Box WITHOUT FUSE |
