Car Auto Boat Marine Blade Fuse Box

Upgraded 12V Fuse Block - Our fuse box adopts a one-in-12-out single-side outlet, which can be installed against the side of the product, saves space, smaller sizes, and makes wiring easier. The shield extends to the top of the contact screws to avoid the structural defect of the conductor falling onto the metal and causing a series of short circuits. A spare slot has been added so that it is easy for the user to replace the fuse at any time in the event of a blown one.

Safe & Secure Material - The blade fuse block material is PA66 + GF15%, It meets all the standards of an ideal fuse box. Which has high mechanical strength, good insulation, and heat & flame resistance. Also with a PC waterproof and dustproof cover, nickel-plated copper connection, and PP*40 sticker, No problems such as fractures, deformation, burning, or short circuits will occur.

Product Parameters - 12 Volt Blade Fuse Box can be fitted with 12 ATO blade fuses for voltages less than DC80V: Individual slots are suitable for circuits with a continuous operating current of less than 40A: Maximum total input current of 150A: Recommended mounting torque for M4 screws is 1.5Nm, Recommended maximum mounting torque for M5 nuts is 3.5Nm.

Scope of Application - The 12V fuse block can be directly connected to any electrical circuit on the car/boat such as roof lights, car headlights, wide-view lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc and widely used in cars, villas, RVs, buses, yachts, boats, etc.

1.Cable connection via side, plated 6.3mm (standard) blade terminals

2.Can be secured via 2 pre molded holes

3.Clear, vibration resistant, snap fit cover

4.Sturdy and robust construction

5.Ideal for Cars, Vans, Motorcycles, Quads, Boats, Marine, Tractor & Many other Automotive Uses

Package Include:

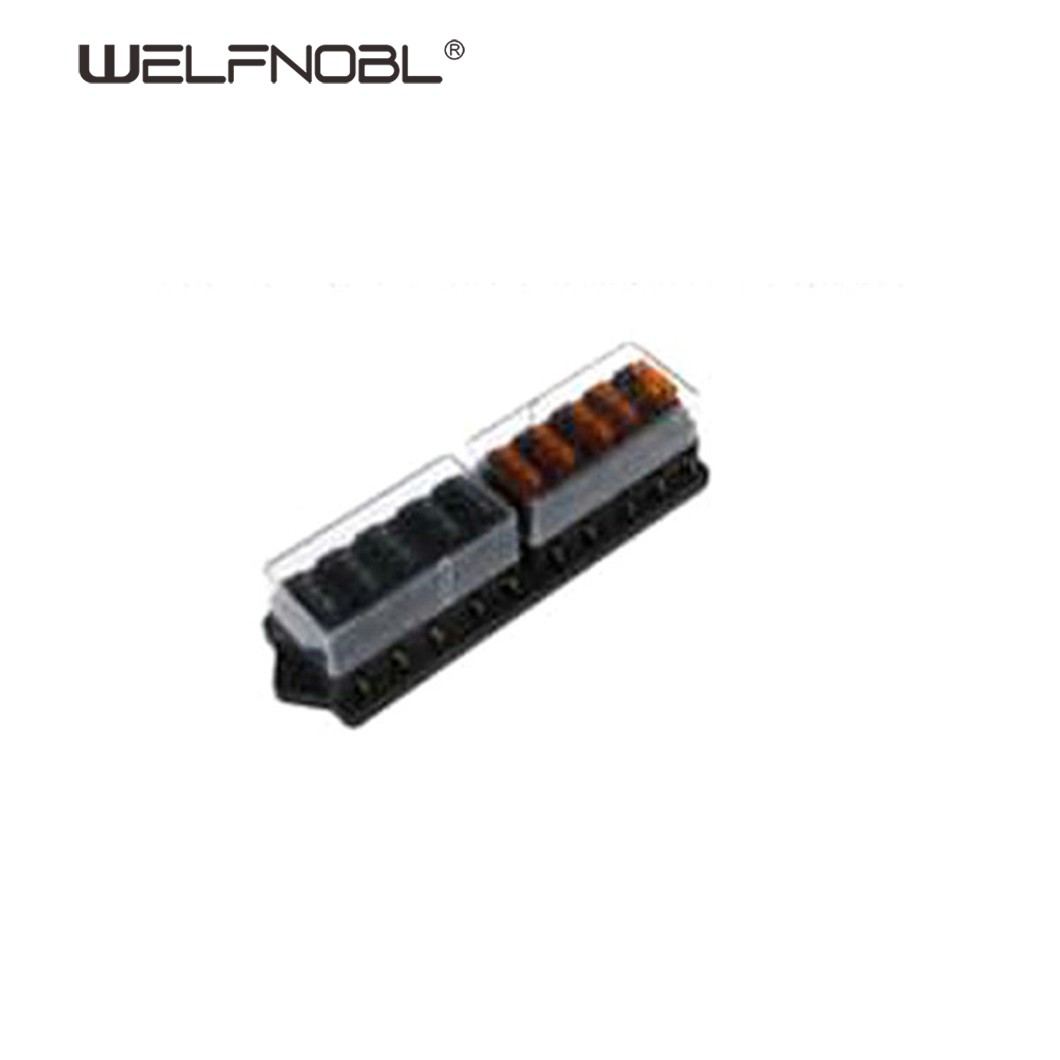

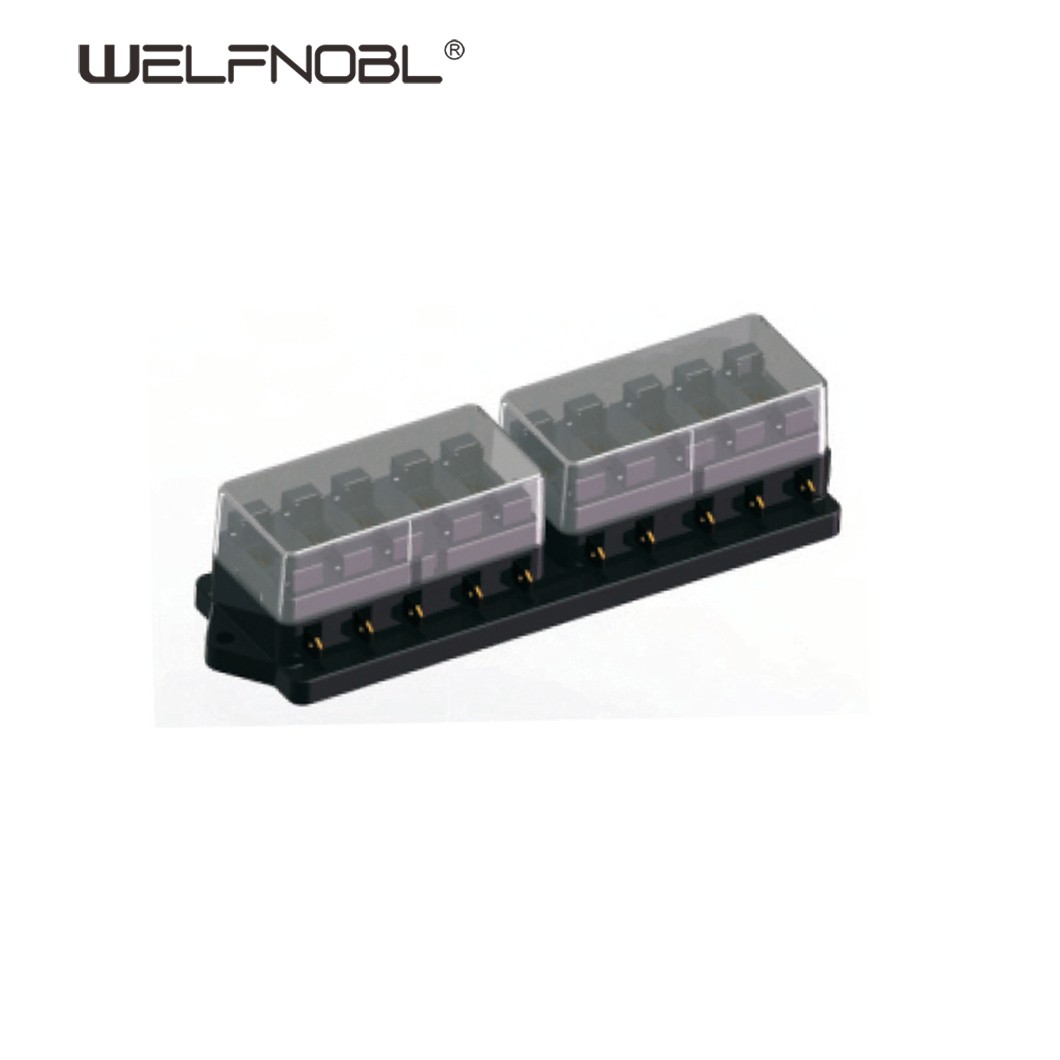

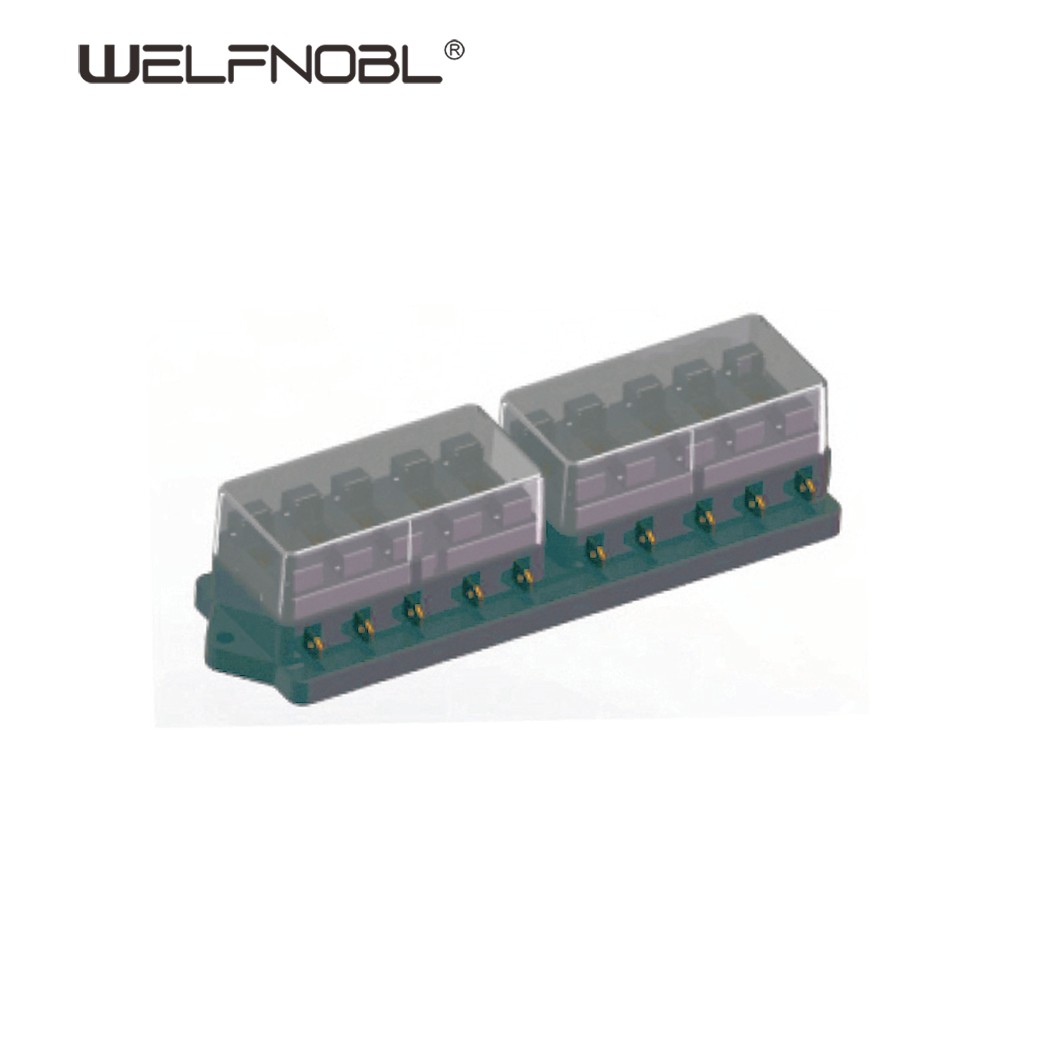

1 X 10 Way Blade Fuse Box

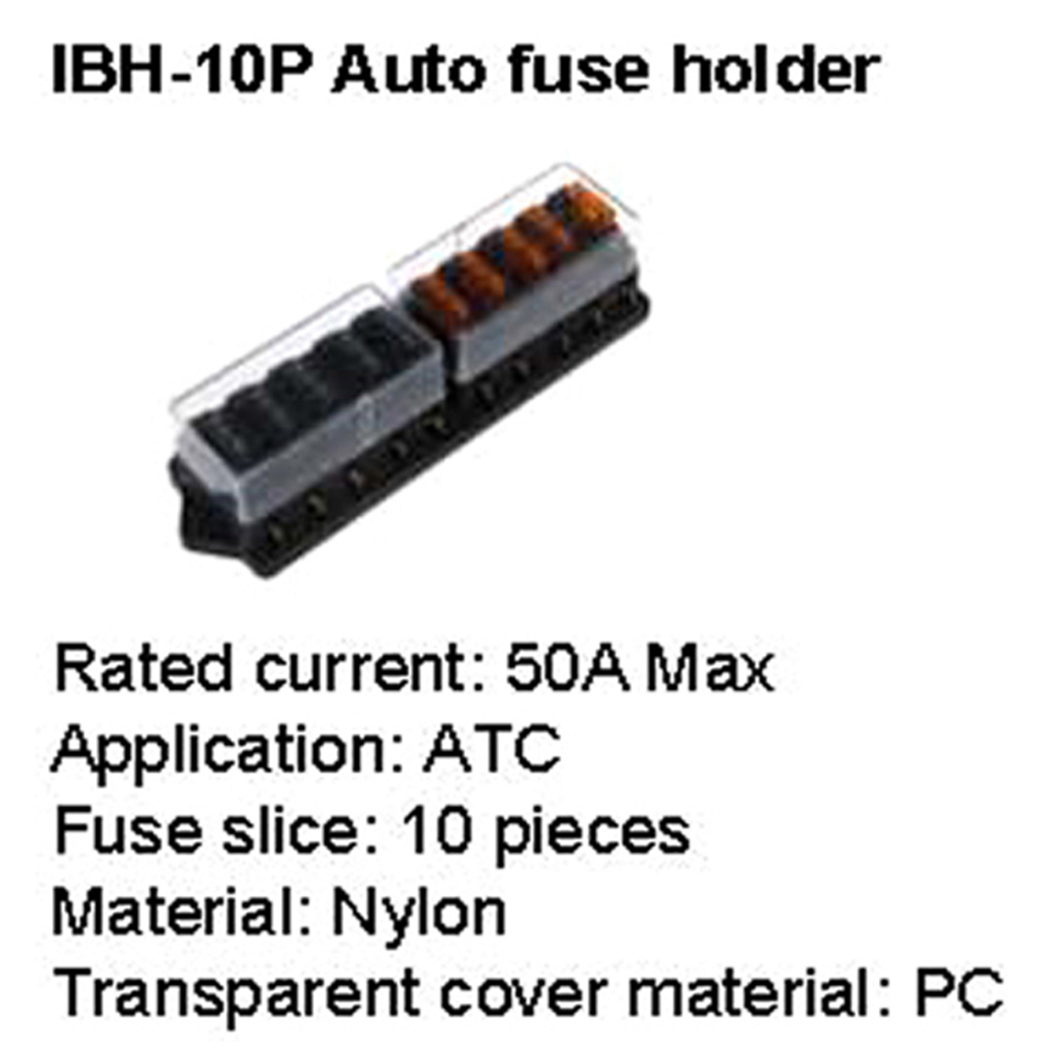

Product name: 10-way ATC/ATO sheet fuse block box

Fuses rating: 1x35Amps, 1x30Amps, 1x25 Amps, 1x20Amps, 1x15 Amps, 1x10Amps, 2x7.5Amps, 2x5 Amps.

Max. Current: 100 Amps

Voltage: 32V

Operating temperature: -20 to 80(℃)



Widely used in 10V-32V cars, boats, trucks, trailers, buses, RVS, etc.

Can repair any function.

Sturdy and sturdy construction.

With transparent cover for dust and moisture protection.

Automotive fuse box, suitable for medium size blade fuses.

Any fuse can be connected to any electrical circuits such as LED light strip, headlight.
