6 Way Blade Fuse Holder

Description

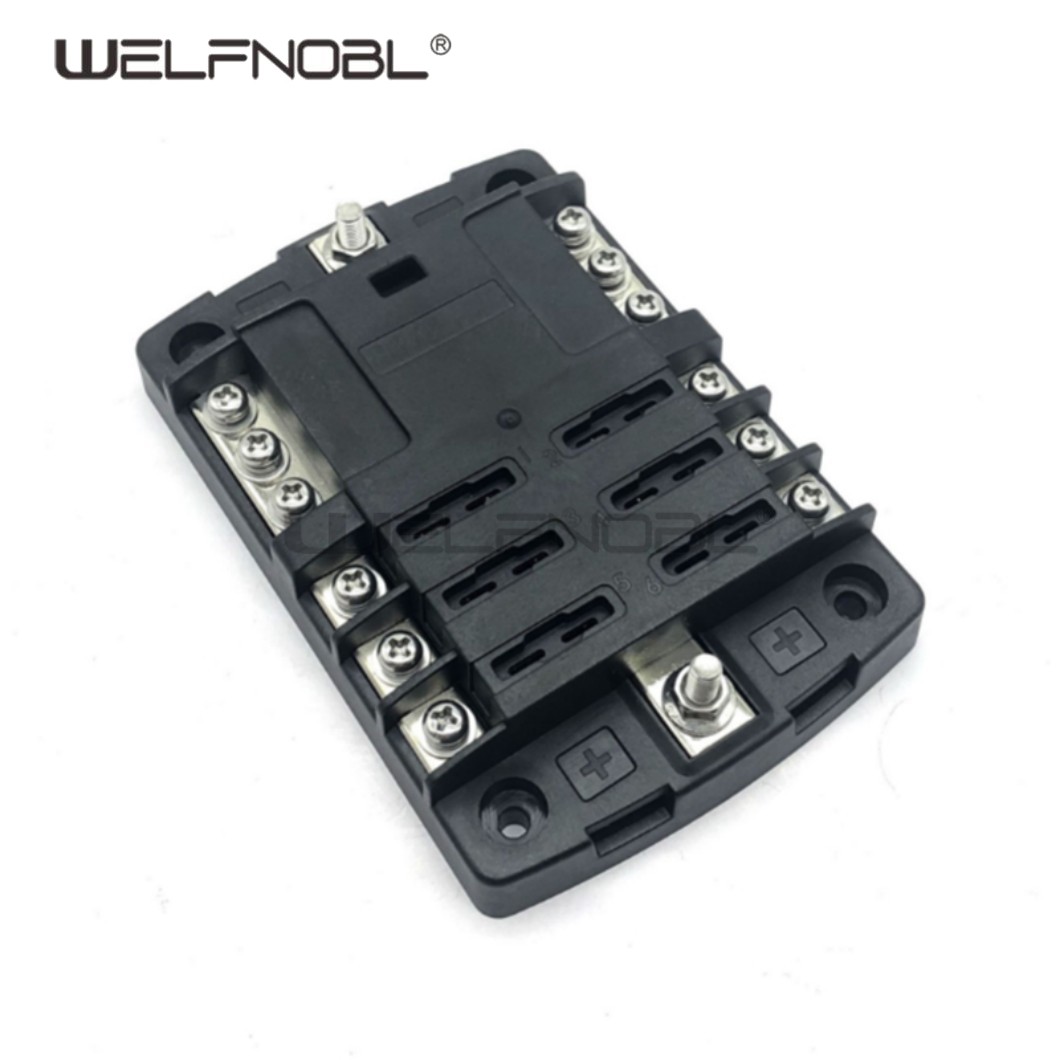

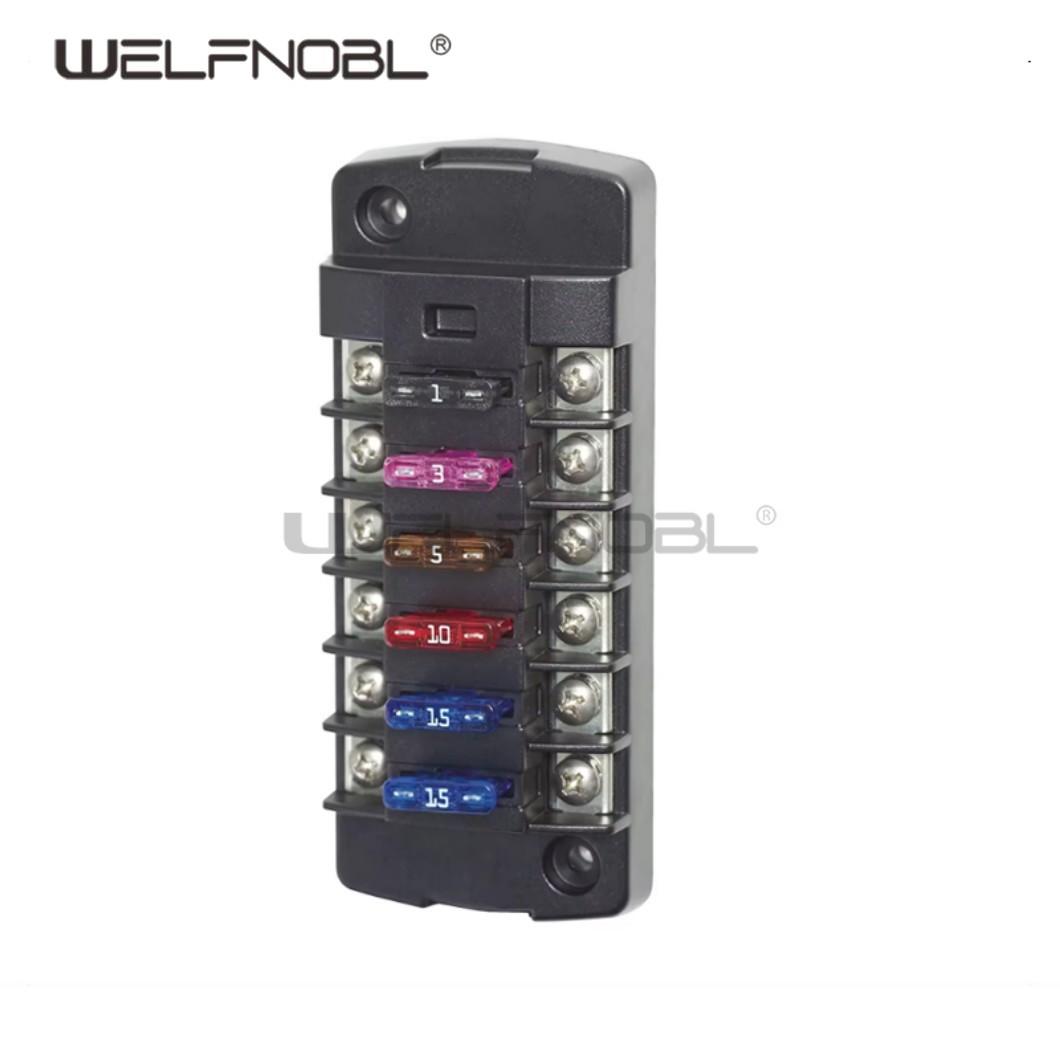

1.Fuse Block ST Blade 6 Circuit with Ground and Cover, part number 5025, can be used for 24-hour circuits

2.Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 (M4) Screw, Negative bus: #10-32 stud,

3.Positive bus:#10-32 stud, Recommended Stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer

4.Positive distribution bus with #10-32 stud

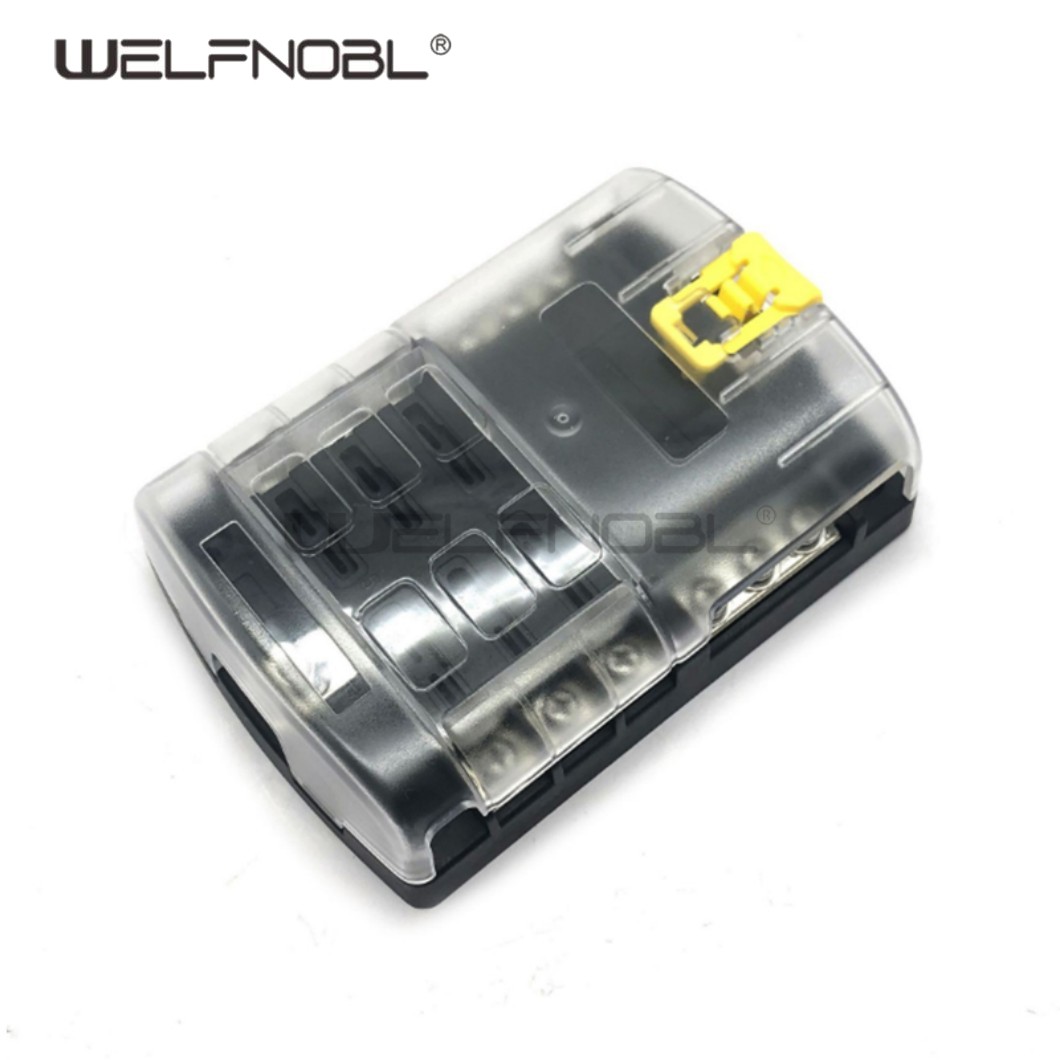

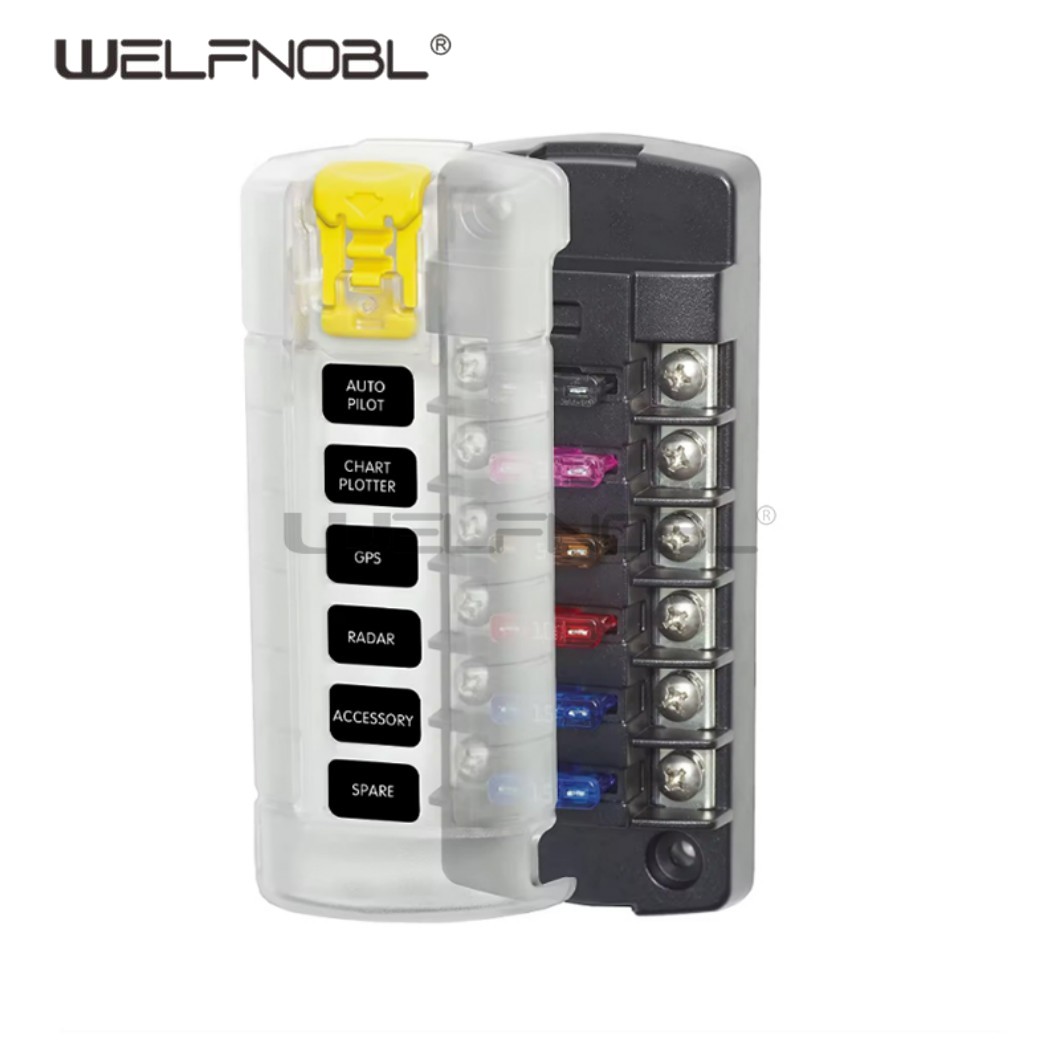

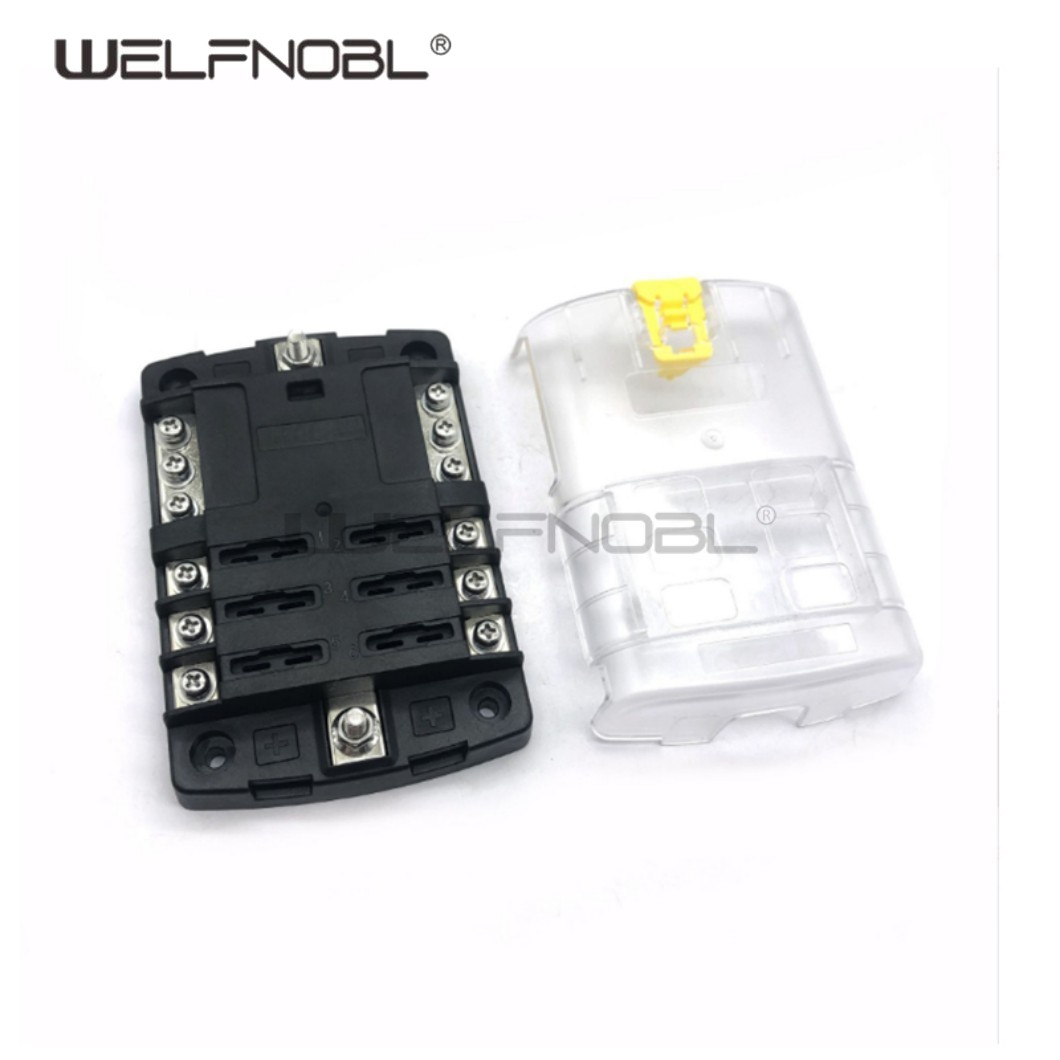

5.Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements and has a push button latch that is easy to open

ST-Blade Fuse Blocks

Consolidates branch circuits and in-line fuses

The ST Blade Fuse Block was designed with fastener terminals to comply with ABYC Recommended Practices, and are built with

tin-plated copper components for improved conductivity and lower operating temperatures. An optional cover protects the conductive

surfaces from accidental shorting, labels each circuit, and stores spare fuses.

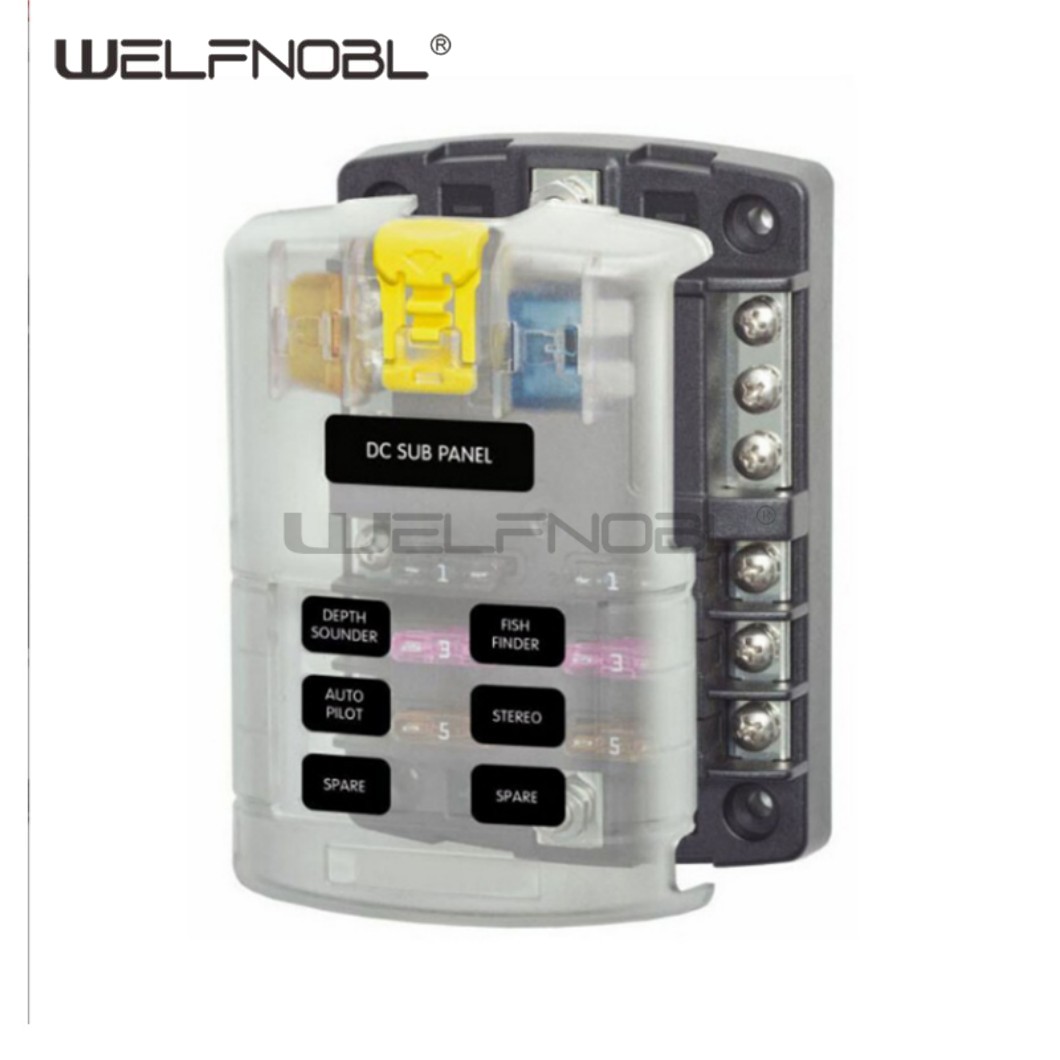

The ST Blade Fuse Block is ideal for use as a sub-panel in the DC distribution system. This solves the problem of using large and expensive circuit breaker panels as circuit protection

for electronics and other branch circuits. With most circuit breaker panels a circuit breaker and an inline fuse are used for to protect electronic devices. By instead utilizing ST Blade

Fuse Block as a sub-panel, fuses more appropriate for electronics can be used, removing the need for inline fuses while only utilizing one position on the panel. This reduces the size of

the panel needed and lowers the overall system.
