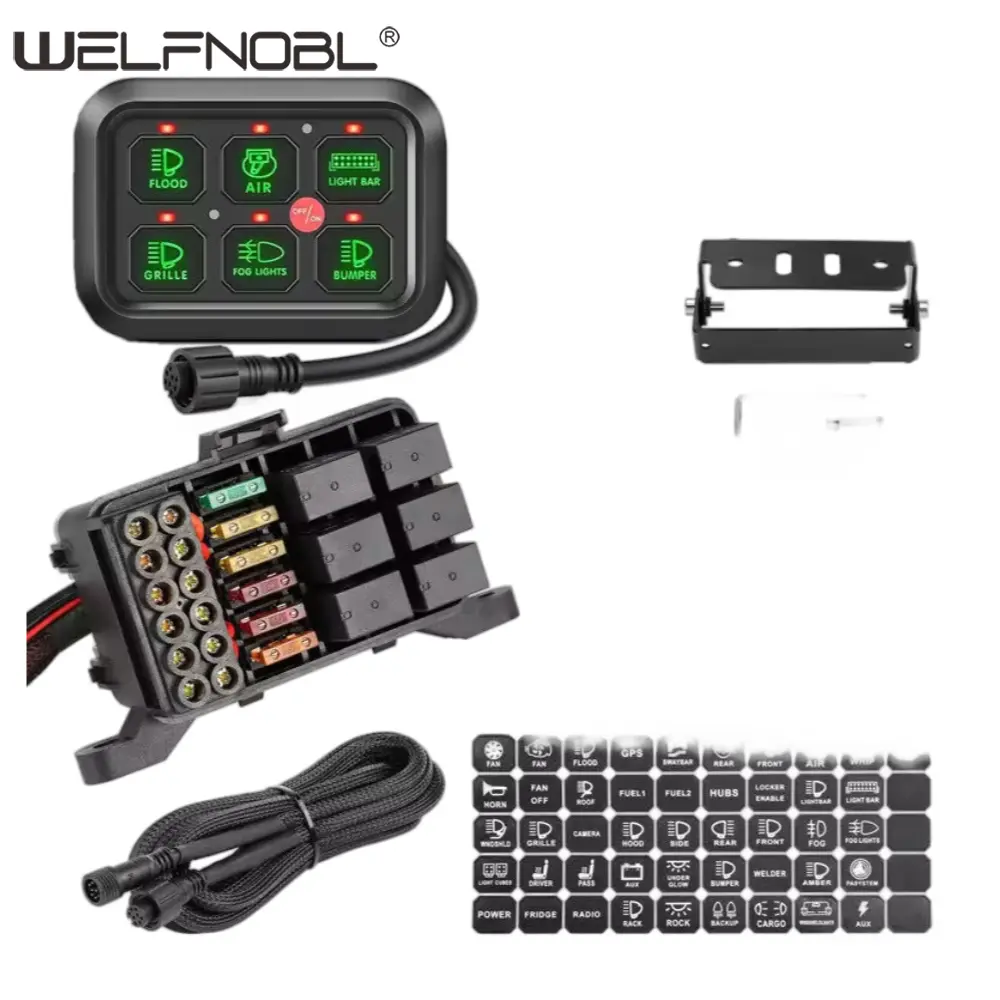

12 V 6‑Gang Switch Panel Overview
Key Technical Specs
Rating - Typical Values/Features - Notes
Rated Voltage
12 Volts DC (with some products allowing for 12 to 24 Volts) - Great for 12 Volt Automotive, Marine, RV systems.
Rated Current/Power
Up to 30 Amps per channel or up to 60 Amps total (or Both) and a maximum power output of 720 watts - 1440 Watts. The majority of products available will provide a 60-amp total and a 720-watt maximum output at 12 volts.
Ingress Protection (IP Rating)
IP65 (Both Water and Dust Proof) - Designed for outdoor/ humid environments.
Material
Housing that is made from an aluminum alloy and ABS or plastic for the front panel or full aluminum (aluminum is better suited for strength and dissipation of heat while plastic is used to reduce the cost).
Dimensions
36 x 59.5 mm (thin) to 59.5 x 80 mm standard (with some manufacturers having slight variation in size).
Switch Type
Mechanical Toggle Switch that contains an LED indicator, adjustable LED backlight, touch type, etc. Some switch types have dimmable backlit LED or wireless controls.
Protection Features
Over Voltage, Over Current, Reverse Polarity and Thermal Protection (Improved Safety).
Accessories
Pre-Printed Labels, Wiring Harnass, Mounting Brackets, Fuses/Circuit Breakers (Makes for Faster, Easier on-Site Installation).
2. Most Used Application Settings
Automotive / Off-road Lighting Control – Vehicles have many different types of lights for many different situations. Different types of lights include headlight, fog light, roof permit blocks for a vehicle.
Marine / Boat Use – Similar to off-road vehicles, boat lighting is also subject to moisture and dust, so a water-resistant and dust-proof design must be used.
Recreational Vehicle (RV) / Camper Vans – Central control of the inside lights plus the outside working lights and air conditioners/heaters.
Construction Equipment / Trucks – Paired with high intensity lamps and various warning lights for vehicle operators.
Do-It-Yourself (DIY) Modifications – There will be a variety of housing styles and label options for the do-it-yourself enthusiast to install in his/her project.
3. Selection Guide
Guidelines Recommendations
Rated Current Select 15 A-30 A/channel, with the combined rating not exceeding 60 A-80A
IP Rating Select IP65 or greater for outdoor and/or humid environments
Material & Heat Dissipation Aluminum has better heat dissipation; however, plastic panels are lighter. Aluminum is preferred for sustained high currents.
Backlight/Indicator Select LED or adjustable backlit models when nighttime operation or visual feedback is needed.
Wireless/Remote Control If a remote/centralized control option is needed, consider models with wireless modules (e.g. 6 Gang Switch Panel system with wireless control).
Complete Accessories Panels provided with the printed labels, wiring harnesses, mounting brackets, and fuse boxes will save installation time.
Dimensional Compatibility Ensure panel cutout sizes (e.g., 145 mm x 85 mm) match the opening in the vehicle or cabin for correct fitment.
4. Pricing & Ordering Methods
So-Called "Made In China" / AliExpress Similar Types: $51 to $59 Depending Upon Material, Backlight & Harness Wiring.
Auto Retrofit/Shops (Marine/Truck): Common Aluminum Alloy Waterproof (IP65 Rated) - Cost Approx, RMB120-RMB250 - Volume Discount (Usually 12 pcs per Box). Prices Will Vary For Material, Features (Backlighting/Wireless) & Quantity Ordered. It Is Suggested That The Buyer Request An Active Quote From Supplier After Confirming Specification.
5. Summary
The 12V 6-Gang Switch Panel is a versatile and flexible option for controlling low voltage DC systems with an IP65 protection rating and a total current rating of 60A-80A with maximum power from 720W-1440W in an aluminum or high-strength plastic enclosure. The Panel has a variety of applications including automotive, off-road, marine, RV, and construction machinery. There are several factors to consider when selecting your ideal panel, these include rated current, IP rating, heat dissipating material, backlight or wireless capability, and the dimensions of the panel will match your installation area. Current market prices for Panels typically range from approximately USD 15-30 (≈ CNY 100-210) and are available via Alibaba, Made-in-China, or specially designed retrofit shops, many of which include complete accessory kits for ease of installation.
Please provide me with further details on what you would like to do with the Panels so that I can help guide you by providing additional options and considerations based on your required model and installation.
